- Overview
- 10 cubic feet
- Double wall construction
- Kanthal A-1 Elements
- 208 or 240 volts
- 80 or 90 Amp Breaker required
- 3 Zone Bartlett Controller at NO EXTRA CHARGE
- New Lid Lifter at NO EXTRA CHARGE
Product Description

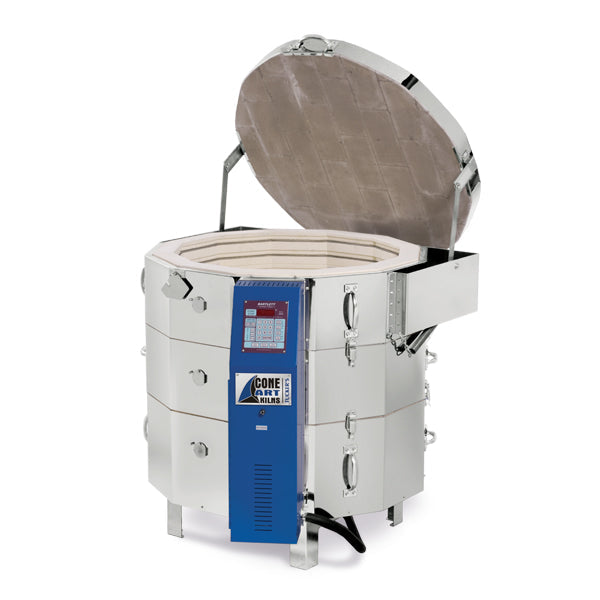

The Tuckers Cone Art Kilns 2827D is a true production kiln that has been designed to fire easily to cone 10 even with high mass loads like tiles.
It is a double insulated kiln with 2.5 ” of premium firebrick plus 1″ of block insulation. This extra thick wall insulation ensures a cooler, safer jacket that can save approximately 30% in electricity costs. It also gives longer element life since the elements don’t have to work so hard.
Heavy-duty Kanthal A-1 elements are installed in the walls and floor for perfectly even firings.
The Bartlett Controller comes with 3 Zone Control at NO EXTRA CHARGE which is mounted on an angled easy view panel.
The Tuckers Cone Art Kiln Model 2827D also comes with our NEW LID LIFTER at NO EXTRA CHARGE.
This kiln is available with either the standard V6-CF keypad or the new Genesis touch screen. The standard model is the BX2827D. The Genesis version is GX2827D.
There is no other Kiln on the market today that can come close to matching all of these features.
Furniture Kit
- 8 – 26″ half Round Shelves
- 6 – 1″ Posts
- 6 – 2″ Posts
- 6 – 4″ Posts
- 6 – 6″ Posts
- 6 – 8″ Posts
- 2Kgs – Kiln Wash
Phase | Volt | Inside Dimensions | Outside Dimensions | Sections | Cubic Feet | Amps | Breaker Required | CU Wire GA(AWG) | Kilowatts | Ship Wt Lbs | Max Cone | Max Temp |
1 | 240 | 28 x 27 | 35 x 33 | 3 | 10.00 | 63.00 | 80 | 4 | 15.10 | 400.00 | 10 | 2350F |
1 | 208 | 28 x 27 | 35 x 33 | 3 | 10.00 | 72.50 | 90 | 4 | 15.10 | 400.00 | 10 | 2350F |
Optional upgrade from the BX (Bartlett V6-CF) control to the new GX (Bartlett Genesis touch screen controller)
This unit is the next generation of kiln controllers. It has a modern, intuitive user platform, and touch screen display. The Genesis has different user-interface levels to match the firing knowledge of the user, and a graphical display of the firing’s progress. It is capable of storing up to 12 custom programs with up to 32 segments each, or you can simply fire by cone number and speed. This unit is Wifi enabled. Soon users will be able to register their units with the manufacturer’s website. This will allow you to download software updates to your laptop, and in turn upload those updates to the controller itself. Dimensions and wiring of this unit are identical to the previous V6-CF model, so people can upgrade to the Genesis from previous models with little effort.
